3.1.18:Offline auto start/stop

1.Feature Introduction

The PowerWriter client software supports the automatic start/stop programming function on the offline programming configuration page. The specific steps are as follows:

  • Check the "Automatic Chip Detection" option.
  • Load the project file to the programmer (click the Load shortcut button or select Offline Load from the Execute menu).
  • Disconnect the connection with the software, and manually trigger one programming cycle by pressing the button.
  • Replace the chip — the programmer will automatically detect and start the programming process.

image-20240415102635835

Depending on production requirements, you can set the debounce time for placing and removing the chip. This helps prevent false detection due to mechanical contact bounce during loading/unloading.

  • Insert chip to jitter time(ms):When chip connection is detected, delay the set time before operation.

  • Unplug chip to jitter time(ms):when the chip is detected offline, delay the set time before the subsequent operation.

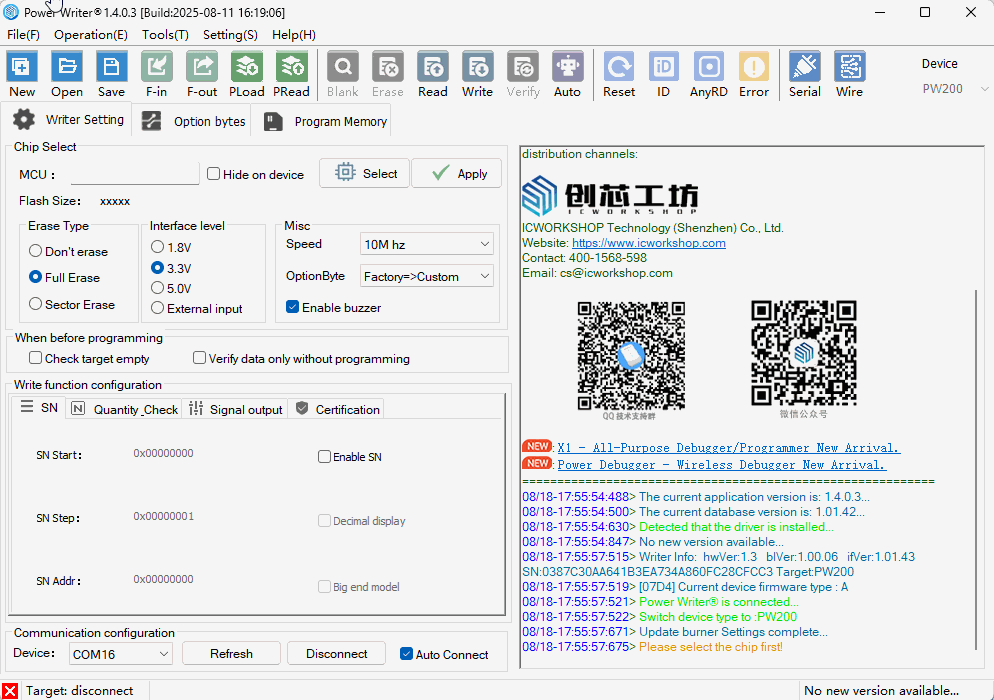

screenshots
