3.1.19：Online Failure

1：Impunity​

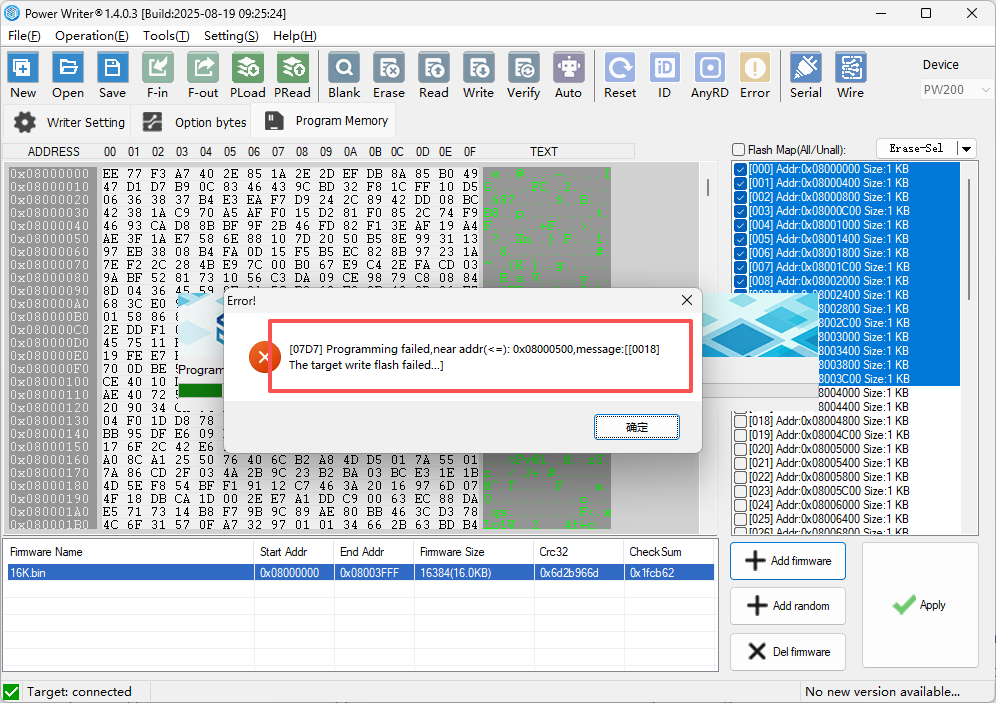

Descriptive: Error Write Flash Address The target write flash failed。

image-20250820165002232

2：Handling​

  • Not erased before programming (programming): Please erase the chip first and retry.
  • The chip is (write) protected: Please set the option byte to default, and then perform a reset after writing the default option word.
  • Other reasons: Occasional reasons such as unstable communication, you can try to replace the cable and retry, if you can not identify the cause by yourself, please contact technical support and submit detailed information for processing.

3：Operation Demonstration​

Due to the absence of erasure, errors occurred during the direct write operation. Erasure is required before programming, or you can opt for the fully automatic programming mode directly.

i18n_3.19

Programming errors occurred due to the protection being enabled. You can either use the fully automatic programming mode, which will first disable the protection and then write the program, or manually disable the protection before writing the program.

i18n_3.19.2
