3.4.5.1 PY32F002B SDK

3.4.5.1.1 Chip tip​

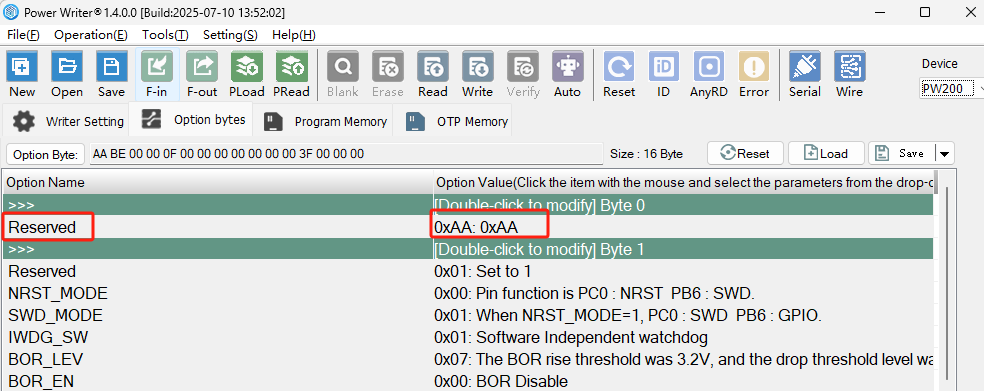

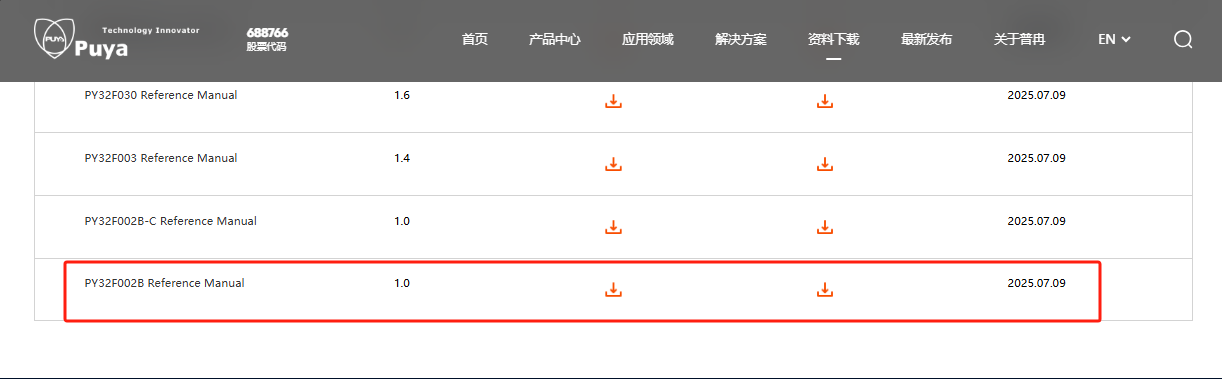

As described in the latest user manual provided by the manufacturer for the PY32F002B, the first byte of the option bytes has been redefined as a reserved field. In previous software versions, this byte was used to configure the protection options. Its value is now fixed at 0xAA by default and cannot be modified.

image-20250718164430904

image-20250718164405601

3.4.5.1.2 Set Protection For PY32F002B on PowerWriter®​

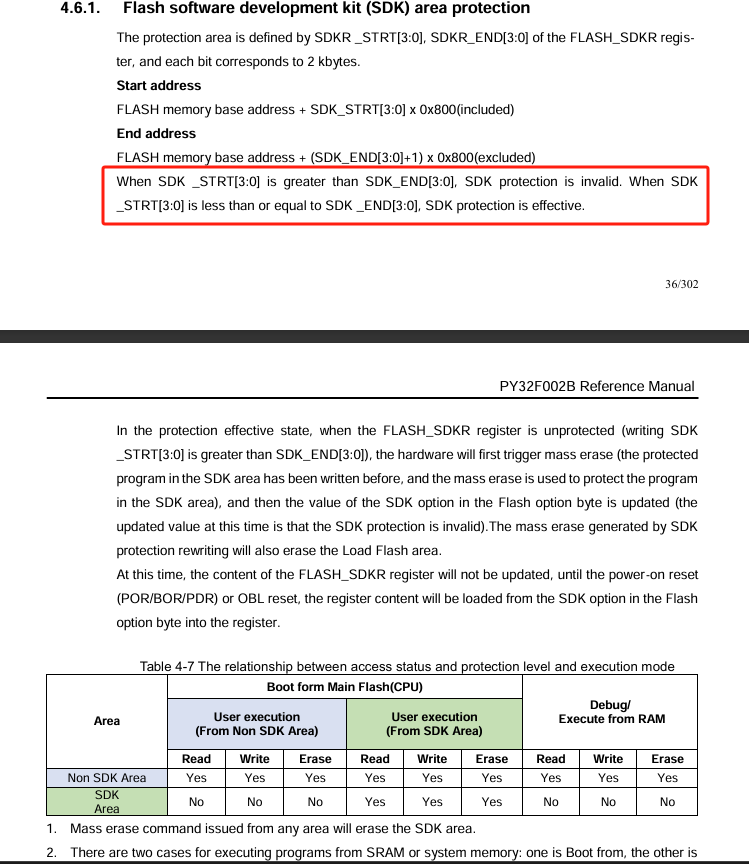

The way to set protection for PY32F002B is by using the SDK. For details, please refer to the user manual below:

image-20250718164806081

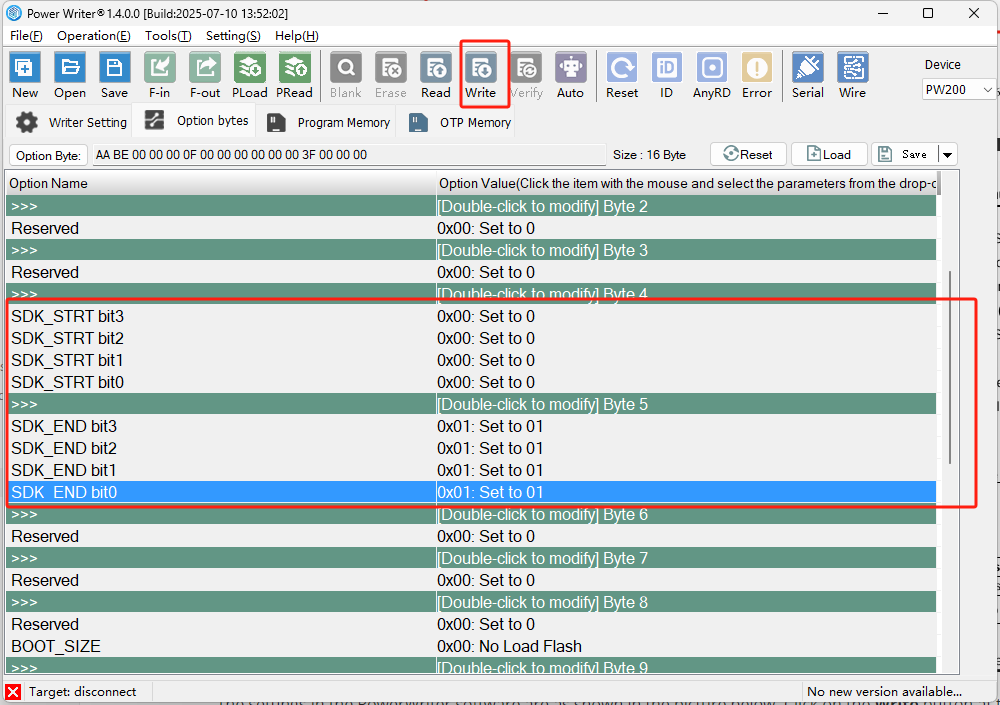

The settings in the PowerWriter® software are as shown in the picture below. Click on the Write button at the top to write the option bytes into the chip.

image-20250718164926605
