3.1.13：Read Project Hash

1.Feature Introduction​

The PW200 and PW300 do not have a display. During production, if you need to verify the project information stored in the device, you can read the engineering summary to confirm it. The engineering summary includes the following information:

  • Whether reading the project back from the device is prohibited
  • Number of files added
    • File 0: Load address, file size, CRC32, checksum
    • File 1: Load address, file size, CRC32, checksum

2.How to Use This Feature​

After connecting the device to the software.

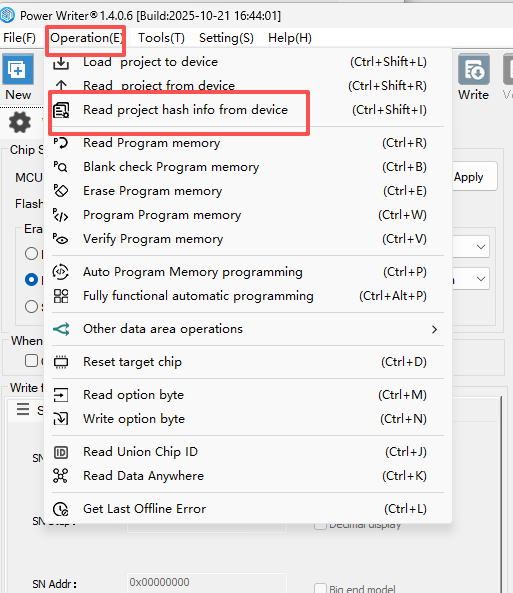

【Operation】 → 【Read project hash info from device】

image-20251219152726038

3.Feature Demonstration​

i18n_abstract

caution

This feature is not supported by PWLINK2 (Lite)!

Whether the project file is encrypted or not does not affect the reading of the hash.
