2.1 Functional parameters

2.1.1 Summary​

PWX1 multifunctional debugger burner, integrated debugger, complete online operation functions, complete offline functions, support for multiple mirrors, support for breakpoint recovery, support for USB expansion, support for access to the network (currently supports Bluetooth), to provide two-color theme UI, such as rich personalized settings, fine CNC body, full-scene customization of the accessories, which can be used for complex development and production scenarios, sufficient to deal with The vast majority of application scenarios, to achieve a machine in hand, no obstacles to complete product development, product production.

info

The PWX1 device is based on the PW300 device, the function is massively enhanced, the above only describes part of the functional characteristics.

2.1.2 Important note (must read)​

  • Please use the supplied accessories, Type-C USB cable, signal cable, and other accessories to avoid communication instability that may prevent normal communication with the device or with the target chip.
  • The use of the Hub should be avoided as much as possible, and opting for a direct connection to the PC USB port will improve communication stability.
  • Please use the supplied DC power supply for power supply when driving PCB boards with large power to avoid unstable system operation caused by insufficient USB power supply.
  • The communication ports of the device are protected by isolation, but in special (high-voltage) applications, it is still necessary to equip a PowerWriter® high-voltage isolation drive controller for isolation, please contact customer service or technical support for details.
  • When the system > Windows 7 SP1, the device is drive-free (no need to install additional drivers), the device can be driven by the system's native driver, if the device communication is abnormal, please through the PowerWriter® Client->Menu->Help->Device Driver Installation for the installation, uninstallation, cleaning and reinstallation of the driver, etc., if you need help, please contact technical support.

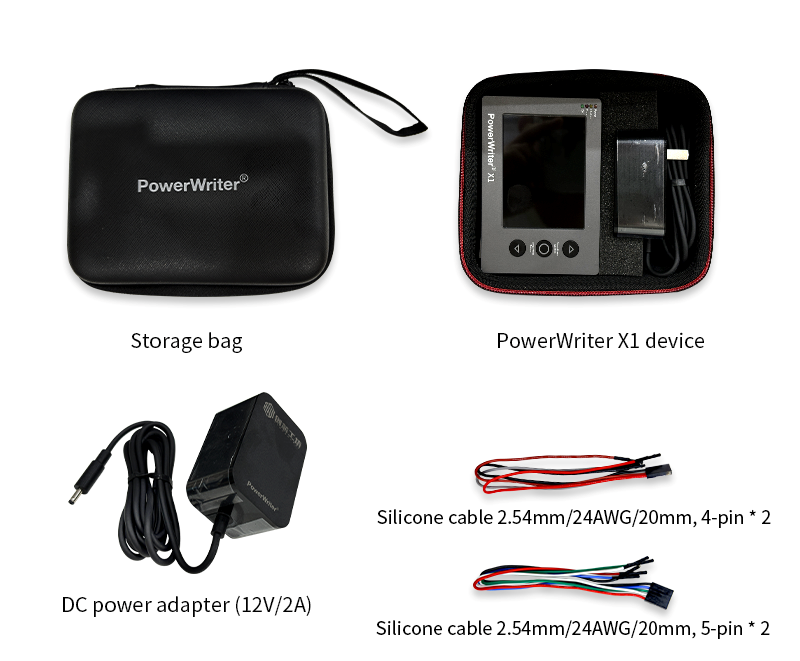

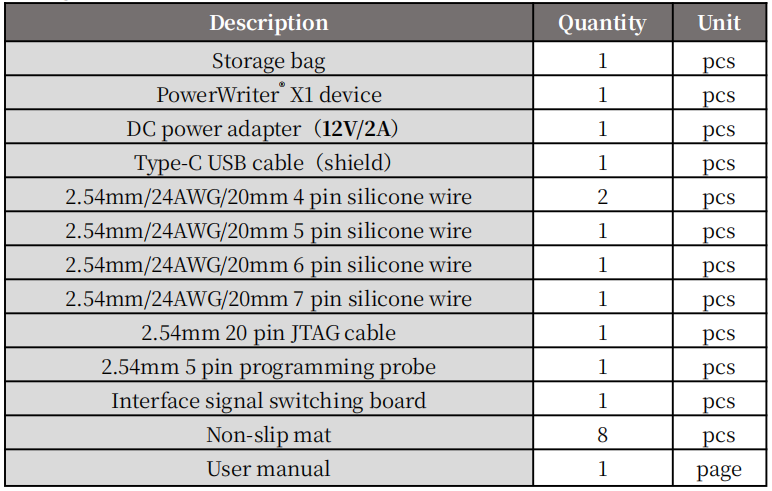

2.1.3 Packing list (standard)​

image-20240506175322511

tip

Device internal storage defaults to 32GB of storage, which is sufficient for high-volume production application scenarios.

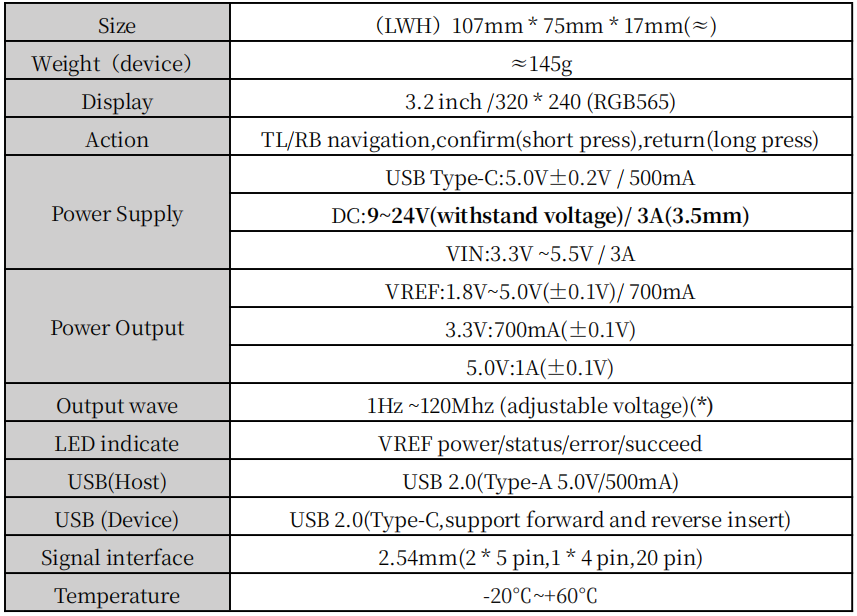

2.1.4 Basic parameter​

image-20240506175451163

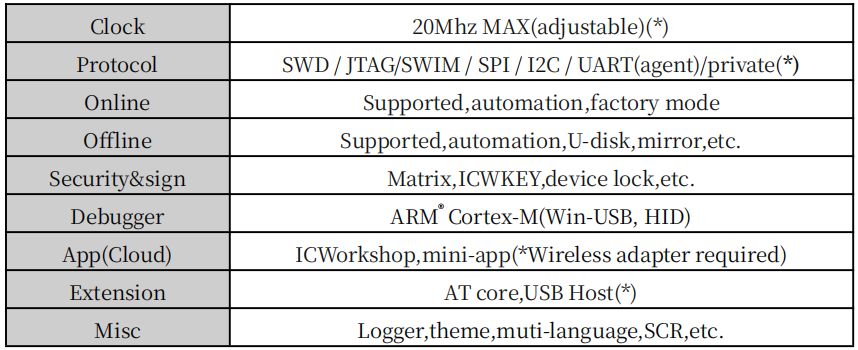

2.1.5 Functional parameters​

image-20240506175507411

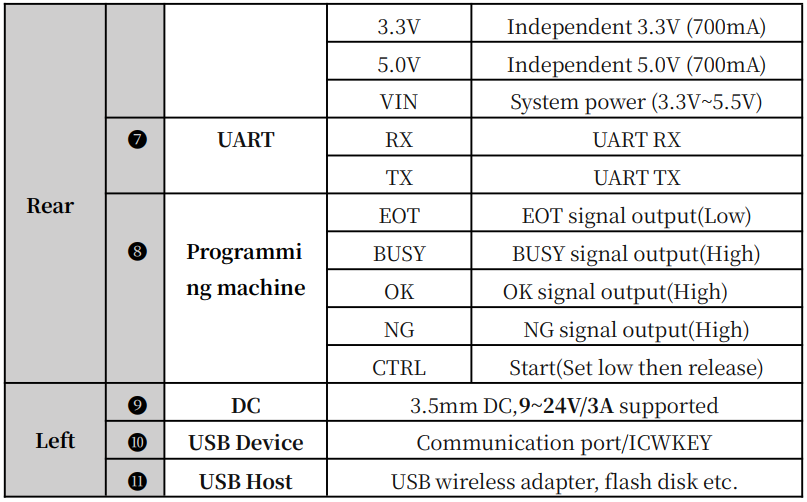

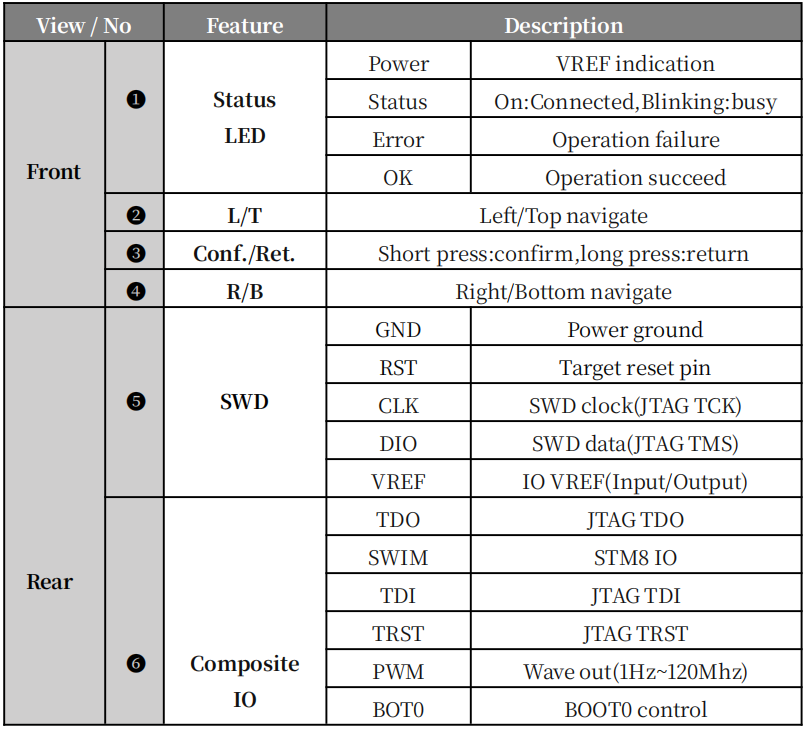

2.1.6 Appearance and Interface​

正面_TAG

image-20240506175550122

image-20240506175625918

2.1.7 Warranty​

  • Products from the date of sale 7 days no reason to return or exchange (does not affect the second sale, except for human damage).
  • Non-personnel damage within 1 month will only be exchanged and not repaired (postage included).
  • A 1-year warranty is provided.
  • More than 1 year repair(need to pay the material labor cost).

No free warranty service is provided for the following situations:

  • Equipment damaged due to artificial damage,modification or maintenance.
  • Equipment is damaged beyond the environment requirements.
caution

(*Note : If clause change, please pay attention to the release information.)
