6.2.2 Save and view logs

1.Function Introduction​

When performing offline standalone programming, the content displayed on the log page of the PWX1 supports saving to the local device. Additionally, the device's system settings allow you to configure the logging verbosity level.

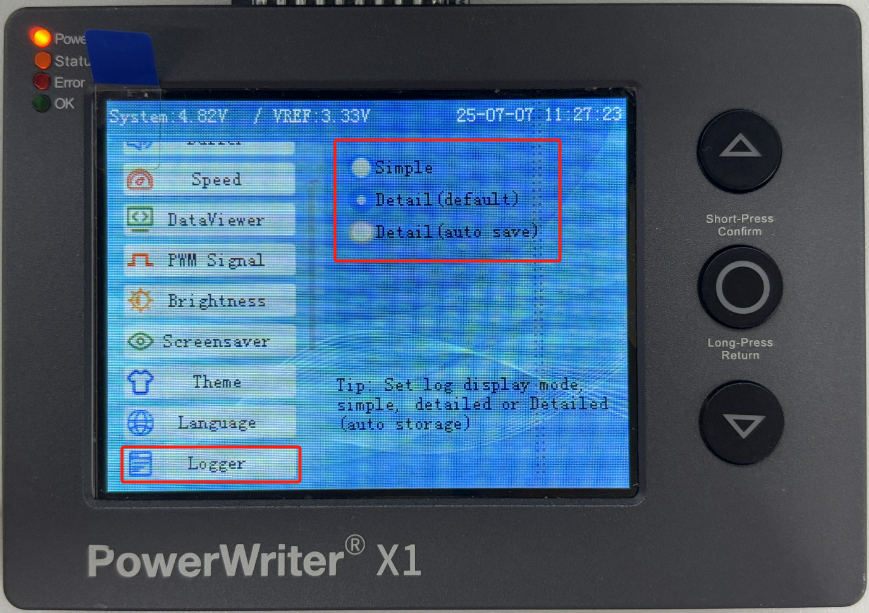

Setting Method: System Settings => Log Level

  • Simple
  • Detailed (Default)
  • Detailed (Auto Save): The programming logs printed on the screen will be automatically saved to the same directory as the project file.

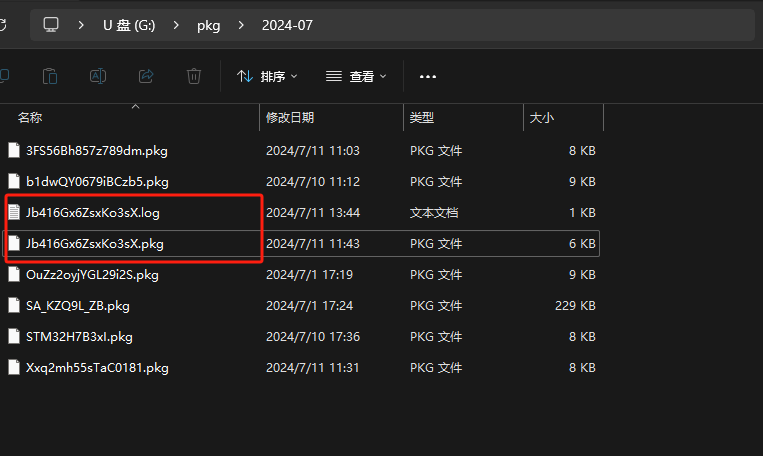

In this mode, connect the device to a computer in U-disk mode, navigate to the folder where the project file is stored, and you will find a log file with the same name as the project file but with a .log extension. This facilitates production traceability for later analysis.

imag

imag

2.Operation Demonstration:​

PWX1_U_I18N
