3.1.11：Offline status get
PWX1 The status of the device operation results are all displayed in the screen interface, without the need for client query.
1：Read the results of an offline operation
You can reconnect to the PC software and click on the Log button to check the reason for failure when you encounter a programming failure during offline programming:
1.1：OEM mismatch

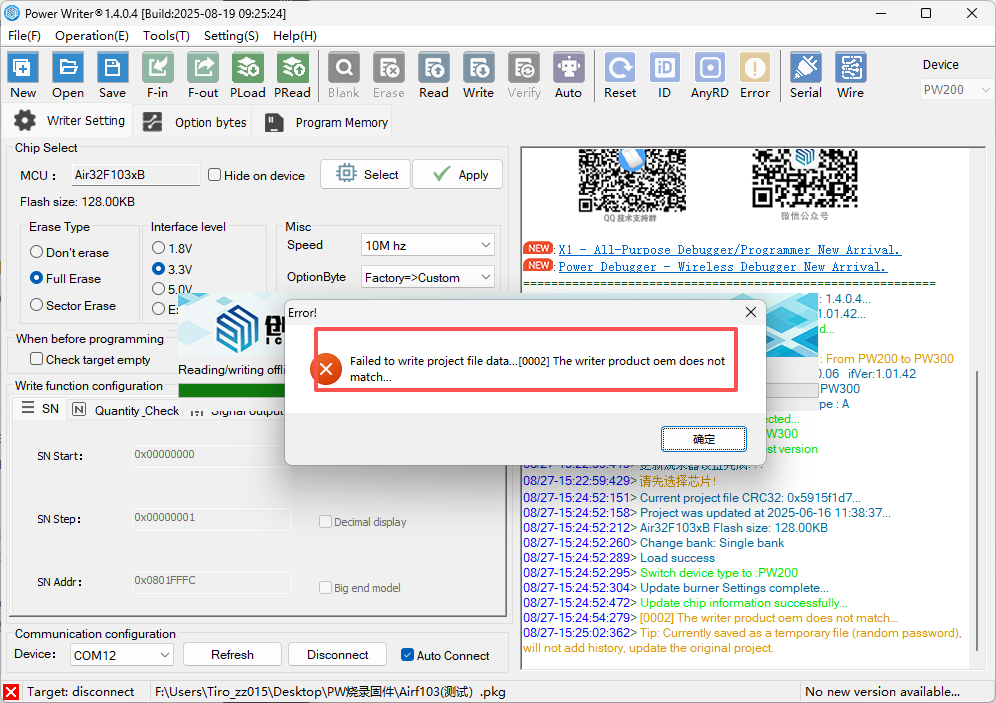

When reading, writing, loading, loading orders from applets, loading orders from Core Workshop, etc., OEM errors, packet non-conformity, etc., may occur, all of which are caused by inconsistencies in the settings of the original project package, the target device, and the project file type.
Handling
After opening the project, in the upper right corner of the client software, modify the product type to the corresponding product type to save and republish, as shown in the following figure:
2：Read device project file
Via Menu->Execute->Read Offline and Save, or the Offline Read button on the toolbar.
3：How to configure the number of writer

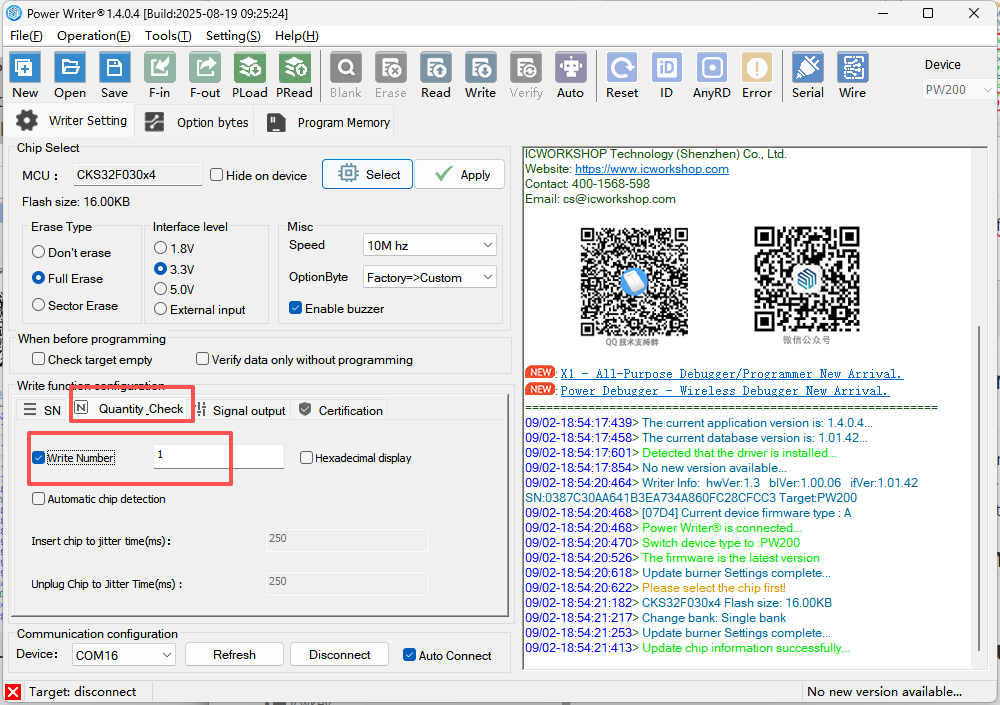

Function Configuration: programmer Setting->Programming Function Configuration->Quantity Setting and Chip Detection->Limit the number of programming times to be turned on, and fill in the set number of times.
4：How to read the remaining count

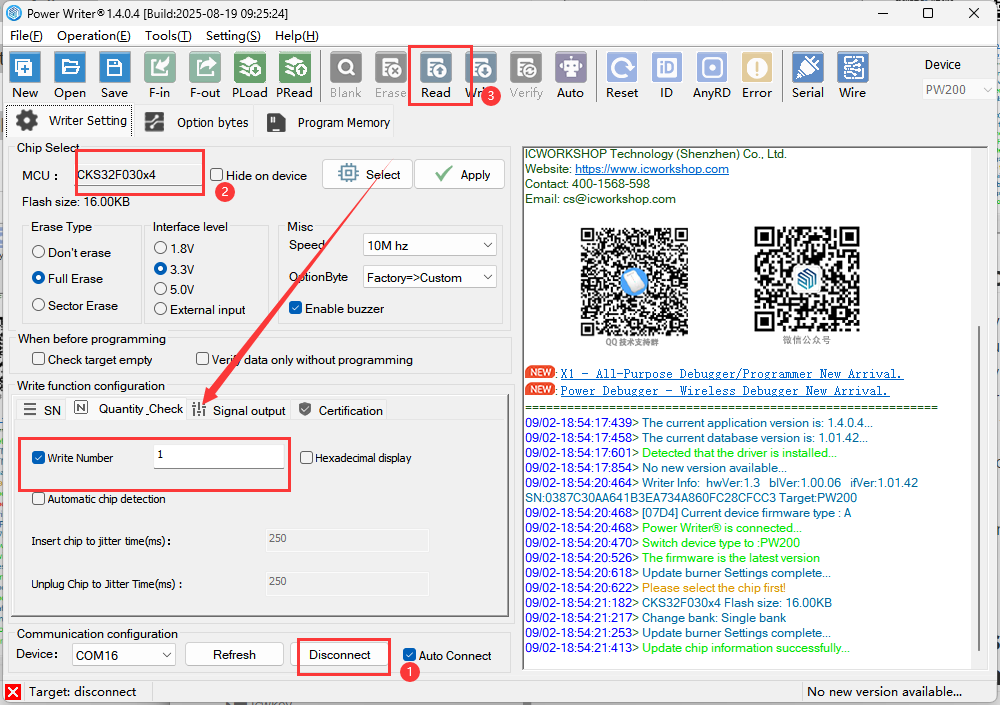

In the process of using the offline programming function, you may need to read or check back the remaining offline programming count. Since some PowerWriter® products do not have a screen, there is no visual display of the information, however, we provide an auxiliary function to read the number of remaining offline programming counts, the steps are as follows:
- Run the PowerWriter® software and connect to the programmer.
- Choose any chip.
- Execute the Read Current Page button in the toolbar on the Programmer Setup page.
5：Repeat programming occurs when auto-programming is turned on
Some chips open SWD multiplexing, offline programming, there is a choice to write the option byte, or turned on the completion of programming to start the chip, or selected the output reset, and turned on the automatic chip detection function (as shown in the figure), may cause the possibility of repeated programming, to detect the chip as far as possible, so that the chip is programmed in the time to be connected to the chip, will not be mistakenly judged as taking open the chip.
Perform the above steps to read back the configuration information of the offline production profile to see the number of offline programmer remaining.
For security: When reading offline production data configuration information, no sensitive information will be read back, such as SN, UID signature information, firmware data will not be read back.
4.Offline Error

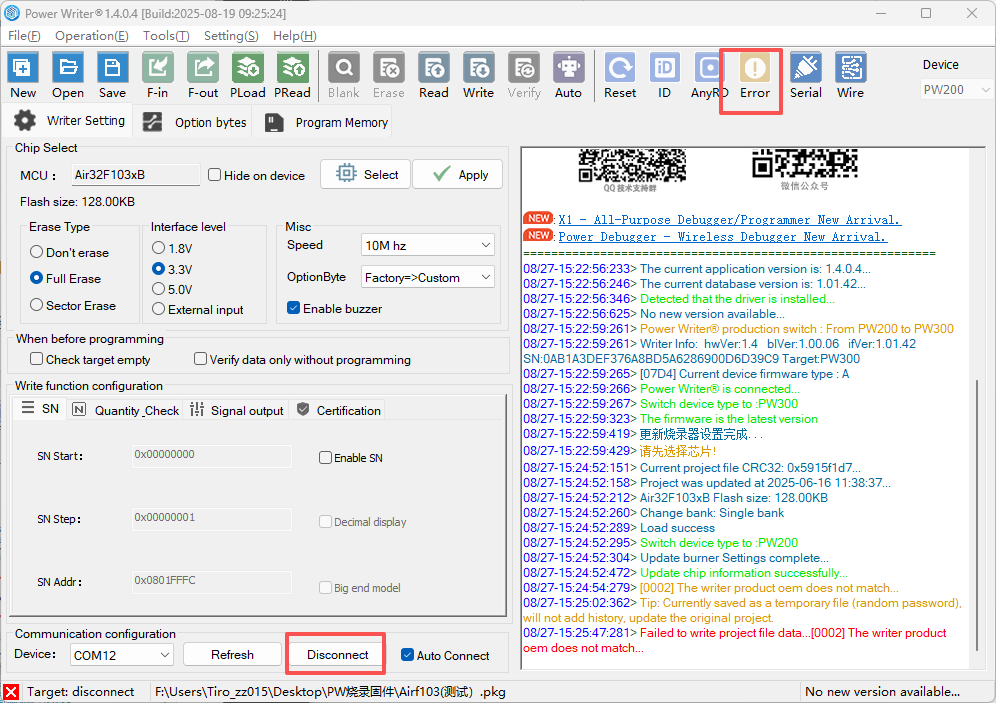

If an error occurs during offline programming with the PW200/PW300, connect the device to the PowerWriter client software and click the 【Error】 button to read back the specific error information.
