3.1.38：USB Wireless Adapter

1：Basic Information​

  • Connector ：USB 2.0 Type A。
  • Power supply：5.0V。
  • Functionality ：BLE 、2.4G WIFI (*)。
  • Size：46mmx16mmx6mm(length x width x height)。
  • Supported Devices:
  • PWX1(X1)
  • PWX4(*)
tip

Elements marked with * indicate features that may be supported in the future.

2：Interface signal​

image-20240425094952916

  • ① USB 2.0 Type-A

  • ② Working status indicator

    • Bright: Connected to network (Bluetooth)
    • Extinguish: Idle
    • Blinking: communication in progress

  • ③： Power indicator

tip

The illustration is not the real thing, please refer to the actual situation.

3：Device Access​

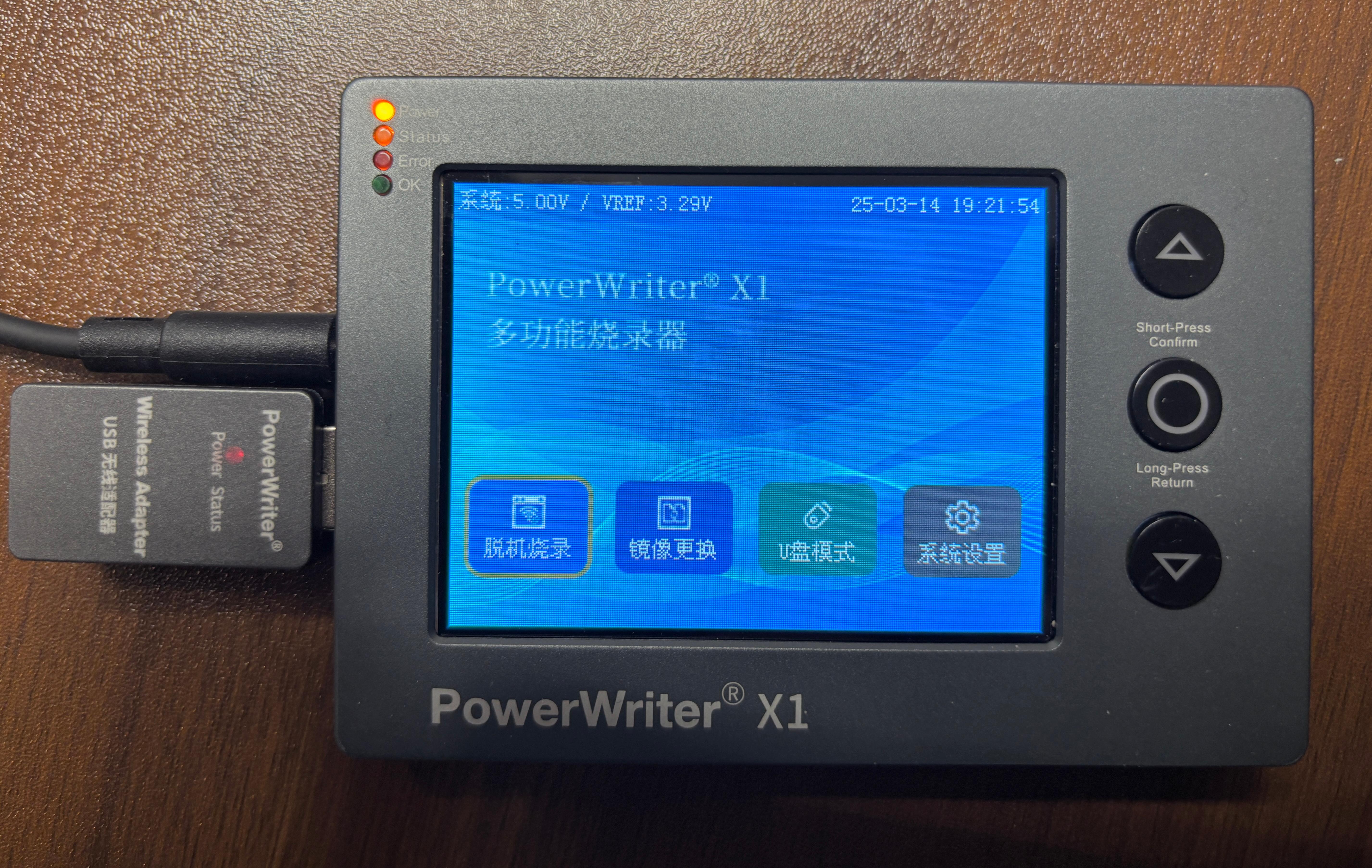

Refer to the following animated demo for the device access method:

正面

4：Application​

The wireless adapter currently supports the WeChat Bluetooth applet, for more information on how to use it, see Bluetooth applet tutorial.

tip

Network support features are upgraded in the future.
