5.4 Cloud platform support

5.4.1: Requirements​

  • The project files of ICWKEY (*.uprj) must be set with a password of more than 8 characters. If the password is shorter than 8 characters, it is not allowed to be published on the platform.
  • A developer account (for posting orders) and an account for accepting orders (to receive order notifications) must be set up. For the basic usage instructions of the platform, please refer to: 3.1.14：ICWorkshop Guide | PowerWriter Docs
  • The equipment used to receive the engineering data of the order must be a brand-new device or a device of the same engineering as the released engineering.

5.4.2:Developer publish​

Please visit: Program Publish-ICWORKSHOP, To carry out the project release of ICWKEY, the following settings are referred to:

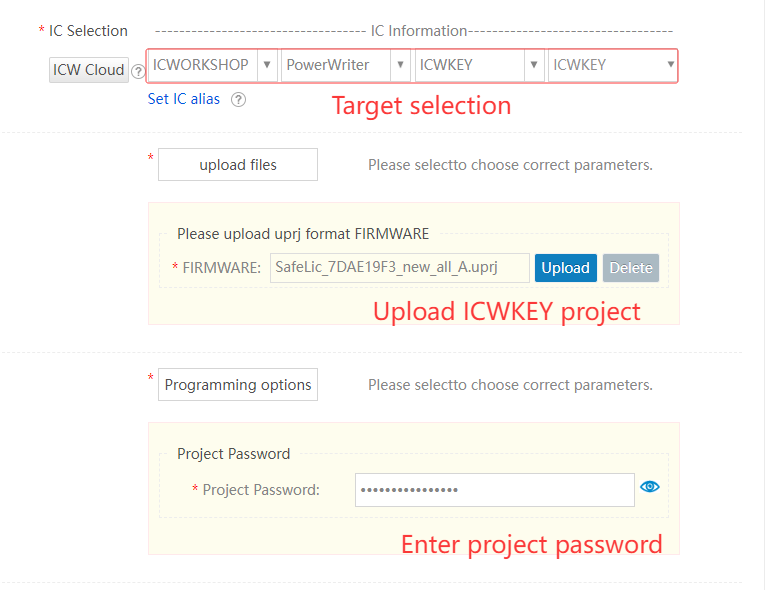

image-20251119185945661

5.4.3: Production loading order​

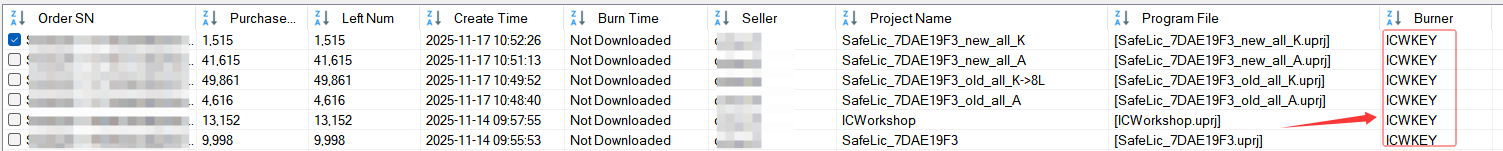

image-20251119190024681

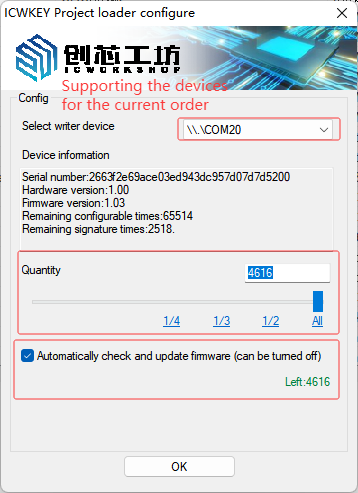

image-20251119190130267

After the order is loaded, check the log to obtain the result:

[INFO:2025-11-19 19:00:27]  > The order data is being read, please wait a moment....
[INFO:2025-11-19 19:00:28]  > The firmware data is being read, please wait a moment....
[INFO:2025-11-19 19:00:29]  > [SafeLic_7DAE19F3_old_all_A.uprj]  crc32: 0x0b7c7504 / checksum: 0x0000efda ...
[INFO:2025-11-19 19:00:29]  > ICWKEY Project name: SafeLic_7DAE19F3
[INFO:2025-11-19 19:02:01]  > Current firmware is already the latest
[INFO:2025-11-19 19:02:01]  > The order was be successfully burned ....
[INFO:2025-11-19 19:02:01]  > ------------------------------------------------------------------------
[INFO:2025-11-19 19:02:01]  > Current order burning:SG202511171048400025843586
[INFO:2025-11-19 19:02:01]  > Current program file:[SafeLic_7DAE19F3_old_all_A.uprj]
[INFO:2025-11-19 19:02:01]  > Current burn count:4616
[INFO:2025-11-19 19:02:01]  > ------------------------------------------------------------------------
[INFO:2025-11-19 19:02:01]  > The order list is being read....
[INFO:2025-11-19 19:02:05]  > Order refresh completed...
